立式多速比雙軸減速機 Vertical High Reduction Double-Axle Reducer
MODEL SVDL

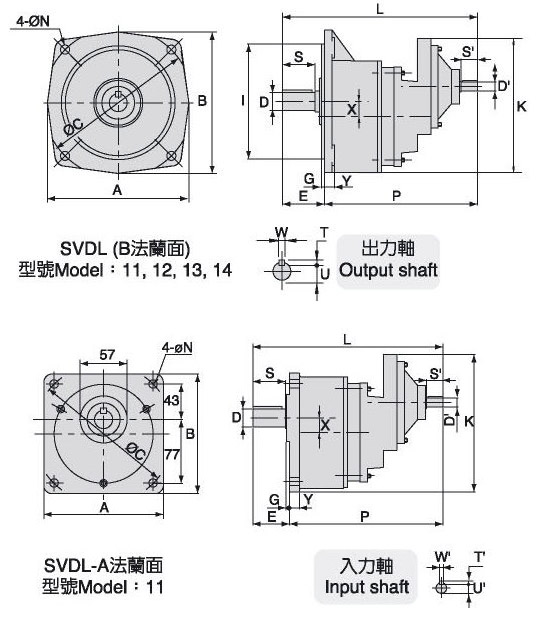

尺寸表 (m/m)
型號
Model
No. |
馬達容量
Motor
Capacity |
減速比
Gear ratio |
A |
B |
C |
N |
I |
X |
G |
Y |
E |
P |
L |
K |
出力軸
Output shaft |
入力軸
Input shaft |
重量
Weight
約 |
| D |
S |
W |
T |
U |
D' |
S' |
W' |
T' |
U' |
| SVDL-A11 |
0.1KW 1/8HPx4P |
1/200~1/2000 |
145 |
145 |
170 |
11 |
- |
18 |
4 |
12 |
46 |
189 |
235 |
168 |
22 |
40 |
7 |
7 |
18 |
11 |
20 |
4 |
4 |
9 |
9 |
| SVDL-11 |
0.1KW 1/8HPx4P |
174 |
174 |
185 |
11 |
140 |
18 |
4 |
12 |
50 |
190 |
240 |
- |
22 |
40 |
7 |
7 |
18 |
11 |
20 |
4 |
4 |
9 |
9 |
| 12 |
0.2KW 1/4HPx4P |
217 |
217 |
235 |
11 |
180 |
23 |
6 |
15 |
58 |
207 |
265 |
- |
28 |
45 |
7 |
7 |
24 |
12 |
25 |
4 |
4 |
10 |
10 |
| 13 |
0.4KW 1/2HPx4P |
250 |
250 |
280 |
13 |
220 |
26 |
5 |
17 |
66 |
254 |
320 |
- |
32 |
55 |
10 |
8 |
27 |
14 |
30 |
5 |
5 |
11 |
13 |
| 14 |
0.7.5KW 1HPx4P |
260 |
276 |
310 |
18 |
230 |
28 |
5 |
20 |
77 |
302 |
379 |
- |
40 |
65 |
10 |
8 |
35 |
19 |
35 |
5 |
5 |
16 |
37 |
|
|
|
|
|
|
|
|
|
|
|
