MODEL：EOVM50#~135#

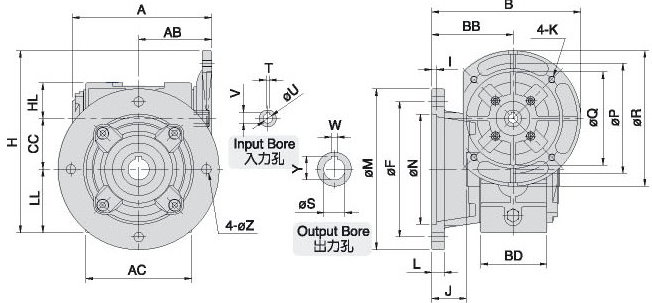

尺寸表 Dimension (m/m)
減速比 馬力
RATIO／HP |
A |
AB |
AC |
B |
BB |
BD |
CC |
H |
M |
F |
L |
I |
J |
N |
Z |
馬達盤IEC
MOTOR FLANGE |
入力孔
INPUT BORE |
出力孔
OUTPUT BORE |
重量
Weight
KG |
型號
MODEL |
1/10
~
1/30 |
1/40
~
1/60 |
P |
Q |
R |
K |
V |
T |
U |
W |
Y |
S |
| 50 |
1/4 |
- |
154 |
81 |
115 |
176 |
96 |
70 |
50 |
195 |
180 |
150 |
13 |
6 |
46 |
130 |
11 |
130 |
110 |
160 |
M8 |
12.7 |
4 |
11 |
6 |
22.8 |
20 |
9.6 |
| 60 |
1/2 |
1/4 |
167 |
87 |
125 |
176 |
96 |
77 |
60 |
215 |
190 |
160 |
15 |
6 |
41 |
130 |
11 |
130 |
110 |
160 |
M8 |
12.7
16.3 |
4
5 |
11
14 |
8 |
28.3 |
25 |
12.4 |
| 70 |
1 |
1/2 |
200 |
108 |
158 |
195
215 |
115 |
87 |
70 |
235
255 |
250 |
215 |
15 |
6 |
50 |
180 |
15 |
130
165 |
110
130 |
160
200 |
M8
M10 |
16.3
21.8 |
5
6 |
14
19 |
8 |
33.3 |
30 |
20 |
| 80 |
2 |
1 |
223 |
118 |
175 |
215 |
115 |
98 |
80 |
272 |
250 |
215 |
16 |
6 |
45 |
180 |
15 |
165 |
130 |
200 |
M10 |
21.8
27.3 |
6
8 |
19
24 |
10 |
38.3 |
35 |
26 |
| 100 |
3 |
2 |
278 |
144 |
226 |
245
270 |
145 |
117 |
100 |
315
340 |
300 |
265 |
16 |
5 |
55 |
230 |
15 |
165
215 |
130
180 |
200
250 |
M10
M12 |
27.3
31.3 |
8 |
24
28 |
10 |
43.3 |
40 |
44.6 |
| 120 |
5 |
3 |
323 |
164 |
264 |
270 |
145 |
137 |
120 |
400 |
350 |
300 |
20 |
7 |
45 |
260 |
17 |
215 |
180 |
250 |
M12 |
31.3 |
8 |
28 |
12 |
48.3 |
45 |
66.6 |
| 135 |
7 1/2 |
5 |
369 |
187 |
306 |
300
325 |
175 |
150 |
135 |
445
470 |
400 |
350 |
24 |
7 |
65 |
320 |
18 |
215
265 |
180
230 |
250
300 |
M12 |
31.3
41.3 |
8
10 |
28
38 |
15 |
59.3 |
55 |
89 |
|
|
|
|
|
|
|
|
|
|
|
