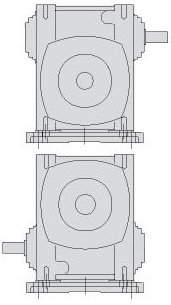

H-KITS40#~135# H型腳座 H TYPE BASE KITS

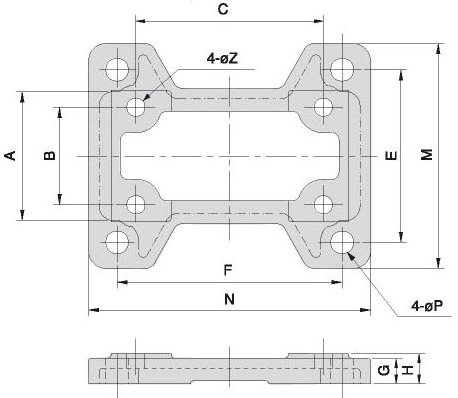

尺寸表 Dimension (m/m)
| MODEL |
A |
B |
C |
E |
F |
G |
H |
M |
N |
P |
Z |
Weight |
| 40 |
55 |
35 |
76 |
71 |
80 |
12 |
12 |
97 |
104 |
14x9 |
7 |
0.2 |
| 50 |
70 |
50 |
90 |
95 |
110 |
13 |
15 |
120 |
140 |
11 |
9 |
0.5 |
| 60 |
80 |
55 |
100 |
105 |
120 |
15 |
18 |
130 |
150 |
11 |
11 |
1 |
| 70 |
88 |
65 |
125 |
115 |
150 |
17 |
20 |
150 |
188 |
15 |
12 |
1 |
| 80 |
100 |
75 |
145 |
135 |
180 |
17 |
20 |
168 |
218 |
15 |
12 |
1.5 |
| 100 |
118 |
85 |
185 |
155 |
220 |
21 |
25 |
188 |
268 |
15 |
12 |
2.5 |
| 120 |
132 |
100 |
220 |
180 |
260 |
21 |
25 |
230 |
320 |
18 |
22 |
4.6 |
| 135 |
145 |
110 |
260 |
200 |
290 |
25 |
30 |
250 |
350 |
18 |
17 |
5.8 |
|
|
|
|
|
|
|
|
|
|
|
