十字滑動型止付螺絲 SOL

外徑O.D.：outside Diameter 內徑I.D.：Inside Diameter

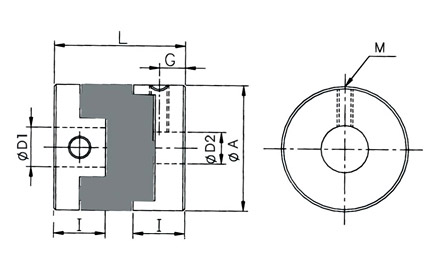

尺寸表 / Dimension單位/unit:mm
|
規格NO.
|
A
|
I
|
L
|
G
|
M
|
D1 - D2
|
重量Weight(g)
|
|
min
|
max
|
|
SOL-16
|
16
|
7
|
18
|
3.5
|
M3
|
4
|
6.35
|
7
|
|
SOL-20
|
20
|
9
|
23
|
4.5
|
M4
|
5
|
8
|
14
|
|
SOL-25
|
25
|
11
|
28
|
5.5
|
M5
|
5
|
10
|
27
|
|
SOL-32
|
32
|
13
|
33
|
6.5
|
M6
|
8
|
14
|
50
|
|
SOL-40
|
40
|
14
|
35
|
7
|
M6
|
10
|
16
|
80
|
|
SOL-50
|
50
|
17
|
38
|
8.5
|
M8
|
14
|
20
|
150
|
|
SOL-63
|
63
|
21
|
47
|
10.5
|
M10
|
15
|
25
|
300
|
特性表 / Specification
|
規格
No.
|
常用扭力
Rated
Torque
(N.m)
|
最大扭力
Max.
Torque
(N.m)
|
最高轉數
Max.
Rotational
(rpm)
|
慣性矩
Moment
of Inertia
(Kg.m 2)
|
剛性 靜扭力值
Staic
Torsional
Stiffness
(N.m/rad)
|
容許偏心
Allowable
Eccentricity Error
(mm)
|
容許角度偏差
Allowable
Angular Error
( o )
|
|
SOL-16
|
0.7
|
1.4
|
3500
|
3.2 x 10-7
|
31
|
1.0
|
3
|
|
SOL-20
|
1.2
|
2.4
|
7600
|
1.0 x 10-6
|
60
|
1.5
|
3
|
|
SOL-25
|
2
|
4
|
6100
|
3.0 x 10-6
|
140
|
2.0
|
3
|
|
SOL-32
|
4.5
|
9
|
4800
|
9.5 x10-5
|
280
|
2.5
|
3
|
|
SOL-40
|
9
|
18
|
3800
|
2.3 x 10-5
|
540
|
3.0
|
3
|
|
SOL-50
|
18
|
36
|
3100
|
6.7 x 10-5
|
820
|
3.5
|
3
|
|
SOL-63
|
36
|
72
|
2400
|
2.2 x 10-4
|
1900
|
4.0
|
3
|
特性 / Fratures
- 高剛性 / High Rigidity
- 絕緣性佳 / Electrical Insulation
- 組合容易 / Easy Assembly
- 耐油性 / Oil Resistance
- 容許偏心、偏角大 / High Allowable Error of Eccentricity and Angularity Misalignment
- 緩衝材：工程塑膠 / Buffer Material : Engineering Plastic
- 固定方式：止付螺絲 / Fix Type : Clamping
- 使用溫度範圍-30℃～100℃ / Working range, -30℃～100℃ Temerature
|
